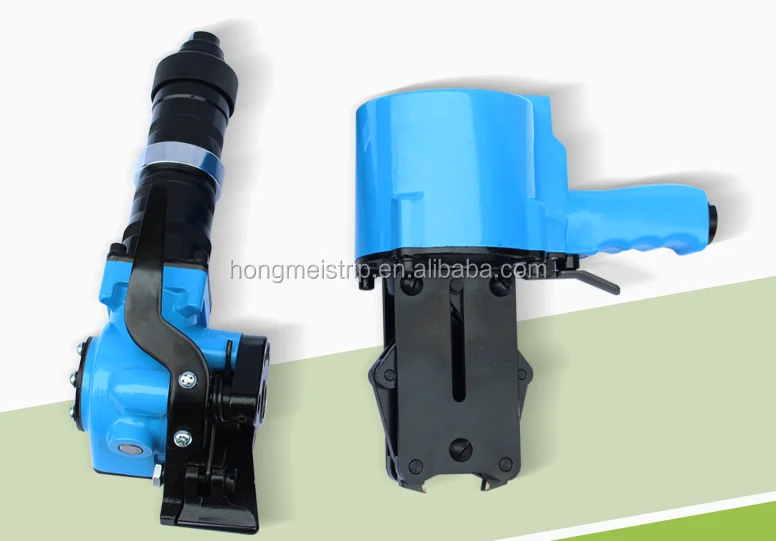

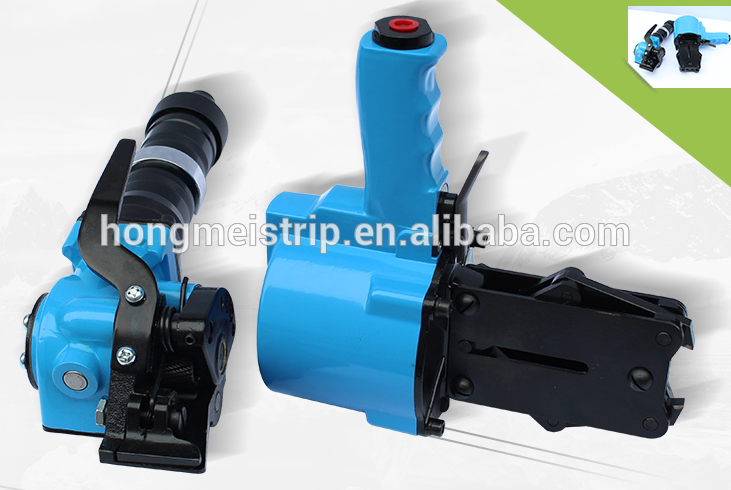

KZL-32 / 19 pneumatic steel strap tensioner with KZS-32 / 19 Pneumatic steel strap sealer is a high degree

of mechanization binding tool, two machines must be used in combination to complete all binding

action (tension, lock, break)

Product description

  1. This pneumatic steel strapping tool is made of KZL series pneumatic strapping tighten machine and KZS series pneumatic strapping lock machin

e, it is a novel high degree of mechanization strapping tools. The two machines must be used in combination in order to complete the binding operation (taut, lock, and break).

2.The pneumatic steel strapping tool is a pneumatic strapping tools with features of light weight, simple operation, safe and reliable, tied securely rapid, and low labor intensity, suitable for strapping steel, pipe, sheet metal and other objects.

3. Low cost,wear resistance and easy to operate.

Specification:

KZS-32 Pneumatic steel Strapping Sealer

• suitable for strapping steel straps
• Strap width: 16,19,25, 32mm
• Strap thickness: 0.8~1.2mm
• pneumatic / air machine
• Air pressure: 0.45~0.6Mpa
• Sealing way:  with metal buckle
• Tensile stress of the seal: >16.8KN
• Weight: 4kg

   KZL-32 Pneumatic Steel Strapping Tensioner

• Strap material: Steel
• Strap width: 16~32mm
• Strap thickness: 0.8~1.2mm
• Air pressure:0.4~0.6Mpa
• Tensioning speed: 2m/min
• Tension: >9.8KN/0.6Mpa
• Weight: 4.8kg

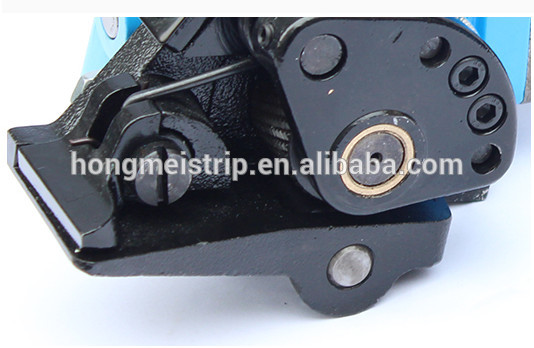

Strong alloy cutter

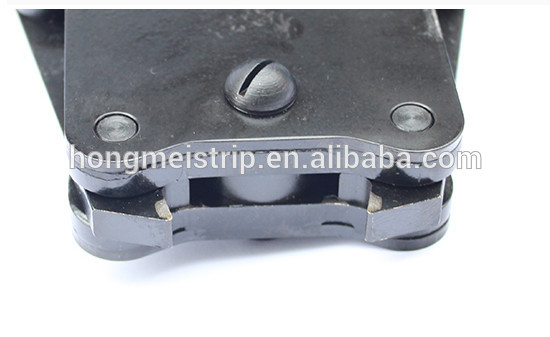

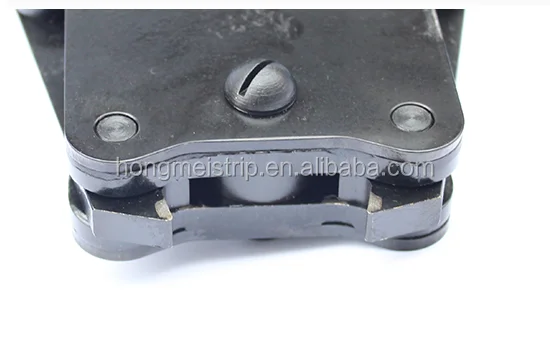

Quenching lock slot

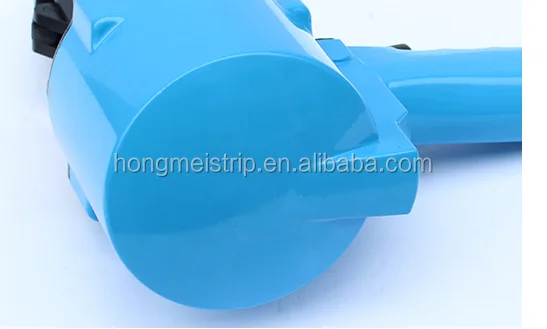

High power cylinder

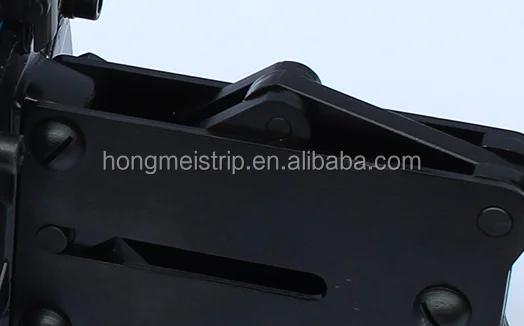

Safety lock design

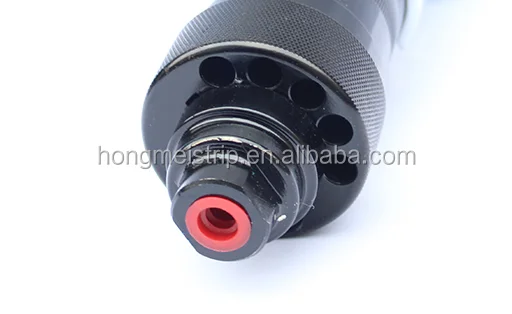

High quality gas mouth

 Features: Simple, safe and reliable, packing quickly, solid, low labor intensity and improve working efficiency. There is only one operator will be able to complete the binding strip tightening, lock, shear, and all other actions.
