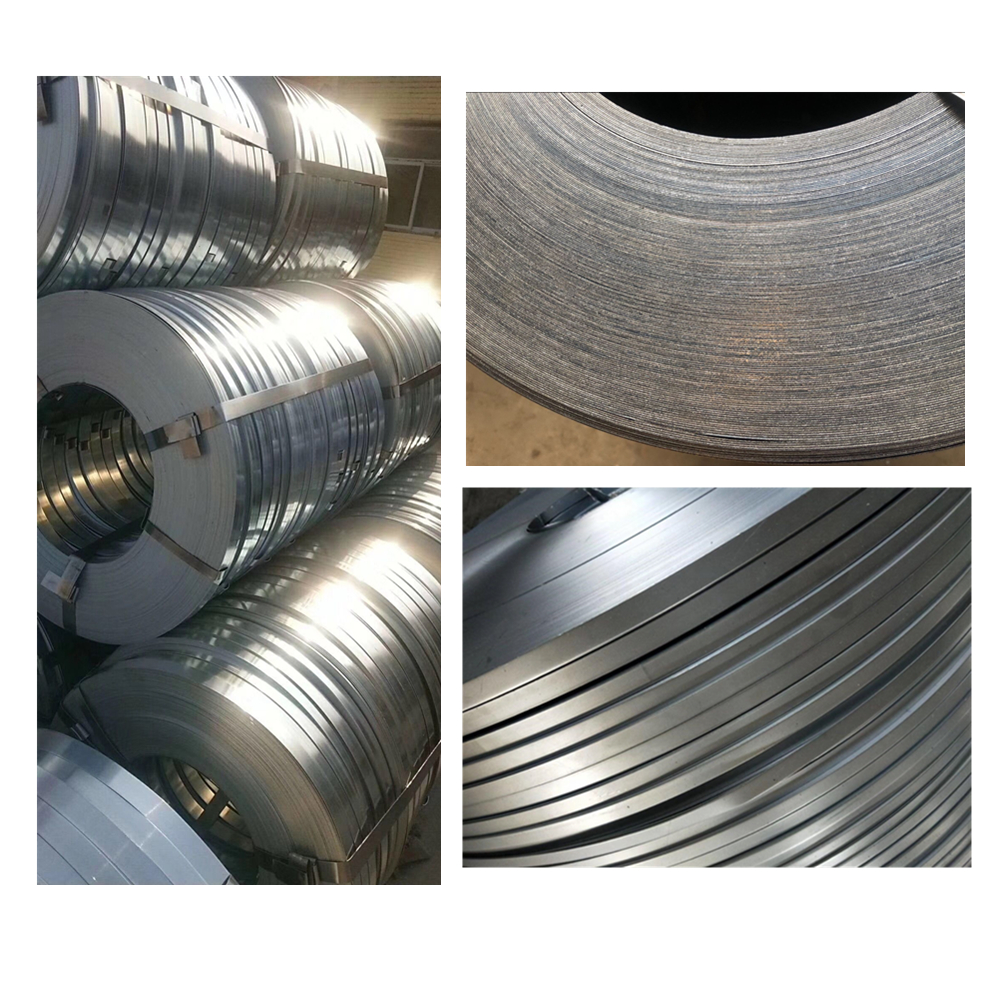

we have blue steel strapping,black painted steel strapping,green painted steel strapping,gray painted steel strapping,galvanized steel strip,cold rolled steel strip,bright finished steel stirp,black annealed steel strip etc .

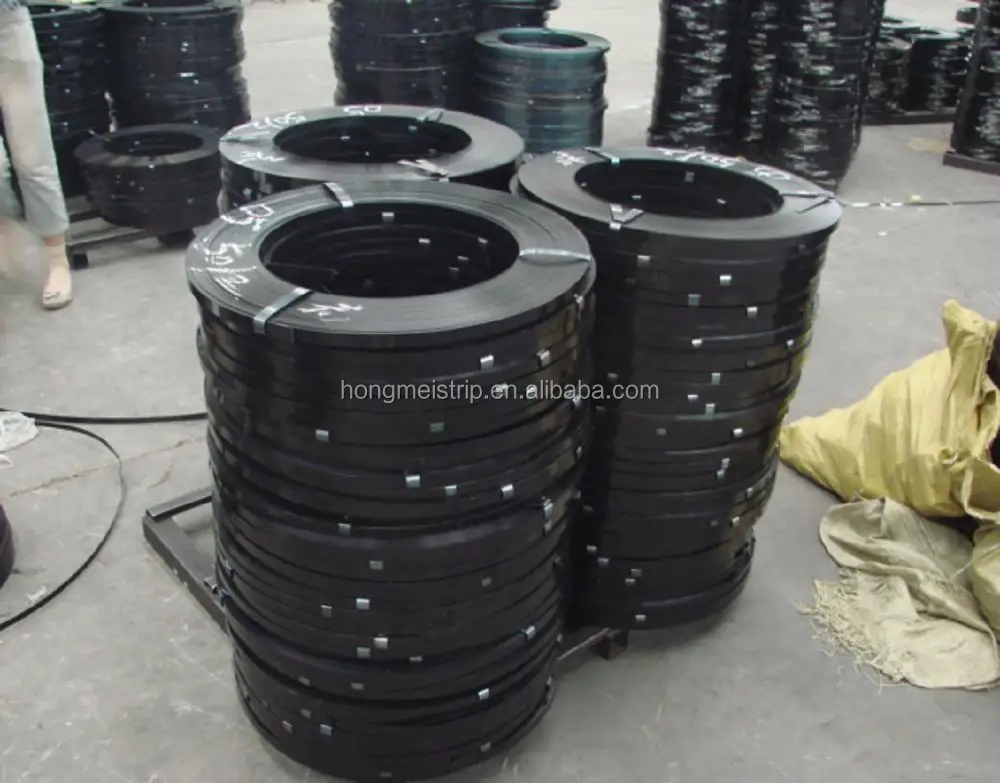

Green  painted steel packing strapping

Specification

1) Thickness: 0.36 - 1.2mm
2) Width: 9.5 - 50mm
3) Tensile stregnth : 650MPa -950MPa

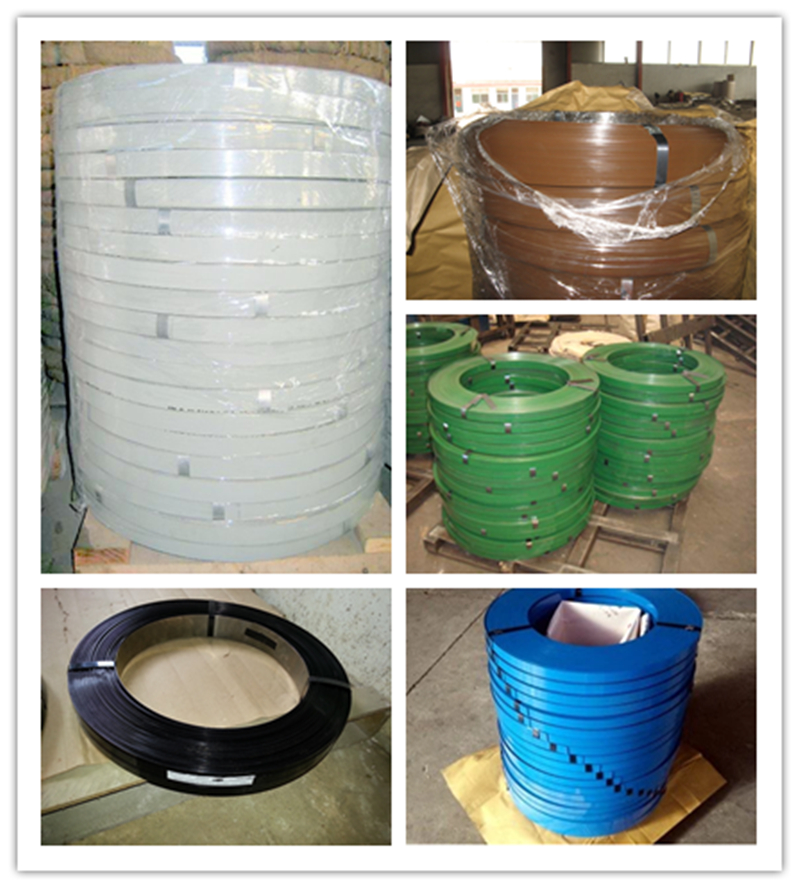

4) Painted color: black ,green,gray,brown etc
5) Surface waxed, and edges deburred
6) Standard: AISI,ASTM,BS,DIN,GB,JIB

7) Steel grades: Q195,Q235,345B,20MnSi

specifications:(thickness X width)

BWG28X3/8",   1/2",   5/8"   (0.36MMX9.5MM,      12.7MM,     16MM)

BWG27X3/8",   1/2",   5/8"   (0.40MMX9.5MM,       12.7MM,     16MM)

BWG26X1/2",   5/8",   3/4"    (0.45MMX12.7MM,     16MM,        19MM)

BWG25X1/2",   5/8",   3/4"    (0.50MMX12.7MM,     16MM,        19MM)

BWG24X1/2",   5/8",   3/4"    (0.55MMX12.7MM,     16MM,        19MM)

BWG23X1/2",   5/8",    3/4"   (0.60MMX12.7MM,     16MM,        19MM)

BWG22X3/4",     1",    11/4"   (0.70MMX19MM,        25.4MM,     32MM)

BWG21X3/4",     1",    11/4"   (0.8MMX19MM,          25.4MM,      32MM)

BWG20X3/4",     1",     11/4"  (0.9MMX19MM.          25.4MM,      32MM)

BWG19X3/4",     1",     11/4"  (1.0MMX19MM,          25.4MM,      32MM)

Tolerances

Mechanical properties

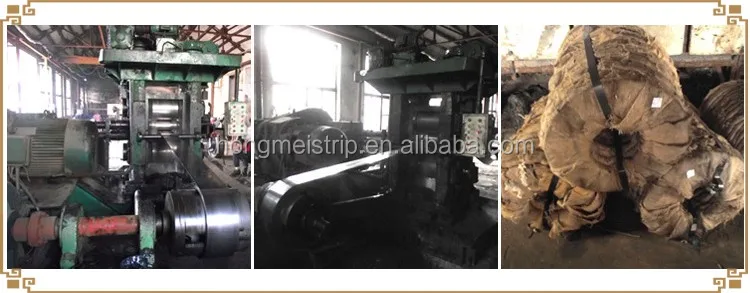

1)ordinary&Standard steel :the product is made from ordinary carbon structured and high quality carbon structured steel via cold rolled.it applys to pack wood,paper.glass.stone.textile.pallet.box and so on.

2) High Tensile steel :the product is make from ordinary carbon structured and high quality carbon structured steel via cold-rolled.it applys to pack profiled bar.tube steel .strip.cotton.textile.timbering.metal and so on.

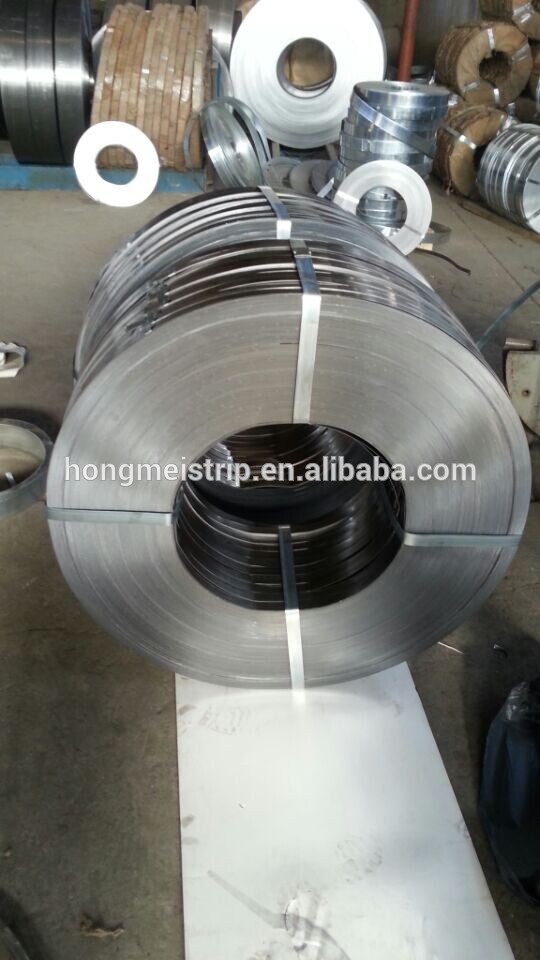

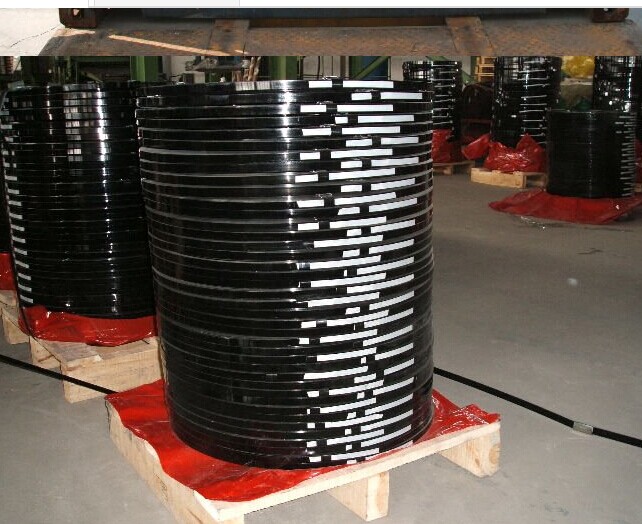

Wound type.

1.     ribbon wound.,

ID:200MM.300MM.406MM.

.

2.     oscillate wound

ID:406MM

SURFACE AND EDGE

1.     painted-waxed steel packing strap

2.     We can make the edge smoother of the steel packing strips.and can produce it as per customers request.

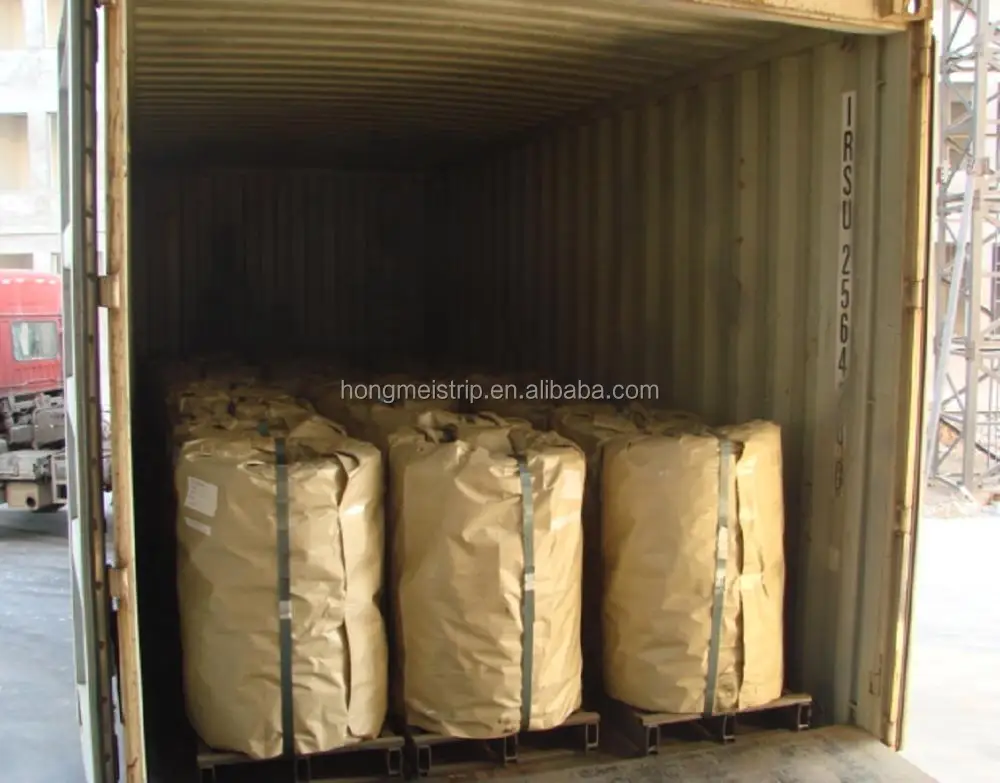

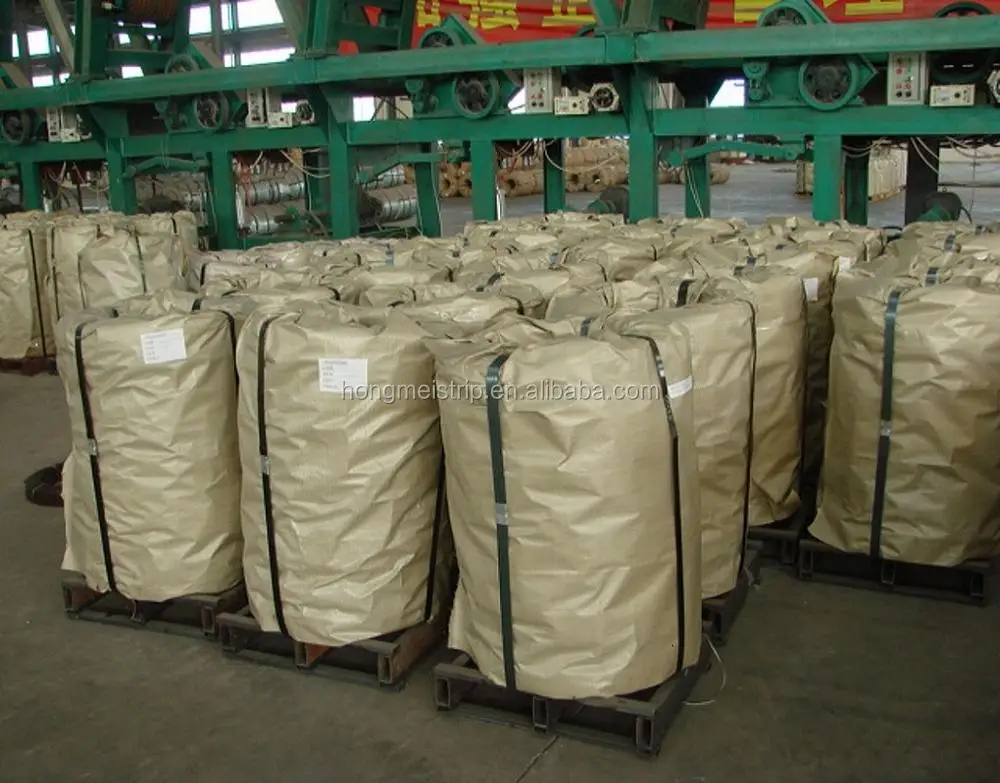

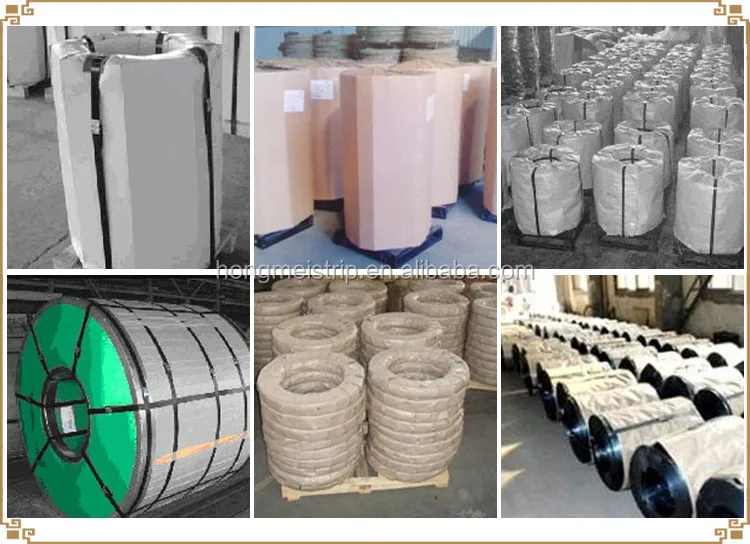

Packaging Detail

inner is protect humidity-protect humidity-proof wax paper.Medium is plastic    film.Outer is sackcloth or compound paper packing.

Applicable

Applicable for the bundling and packing of wood, paper, cotton spinning, glass, and steel weld tube and all kinds of heavy goods.
