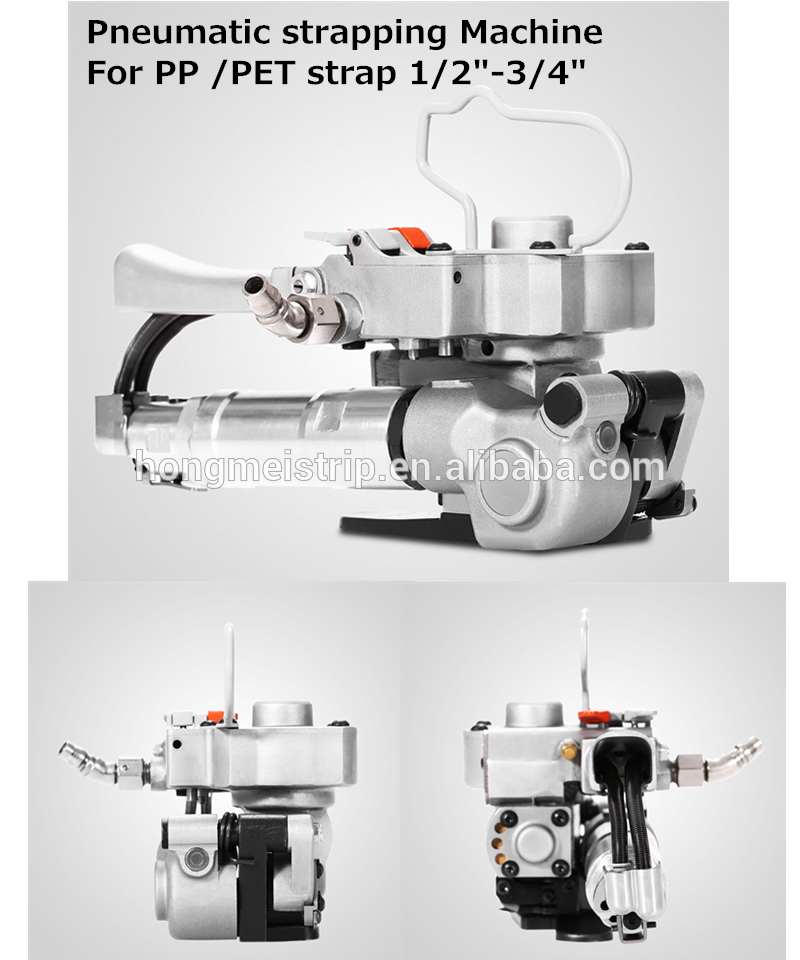

XQD-19 Pneumatic PET Strap packing machine for 1/2"-3/4" Plastic Strap

Feature

Pneumatic tensioning and friction welding and cutting tool, widely used in industrial packing application.

Easy to operate,Two button operation,Easy to remove strap after cycling

Superior performance ,Fast cycle time

High tensioning force up to 300kg, High-strength friction weld

Simple ,Few wear parts to replace

Wear parts can be replaced in minutes,Durable

All metal and alloy parts provide long-lasting, low maintenance operation

Machine Technical Parameters

 Model : XQD-19

 Tool size: 280×160×180mm

 Tool weight: 3.8kg

 Air pressure: 0.5-0.8MPa(72-100PSI)

 Strap material: Polyester

 Strap width: 13,16,19mm

 Strap thickness: 0.5-1.2mm

 Tension : >=3000N

 Model:XQD-25

Tool size: 280×160×180mm

Tool weight: 3.8kg

 Air pressure: 0.5-0.8MPa(72-100PSI)

 Strap material: Polyester

 Strap width: 19-25mm

 Strap thickness: 0.5-1.2mm

 Tension : >=3000N

This type of tool is both for tensioning and welding and cutting.

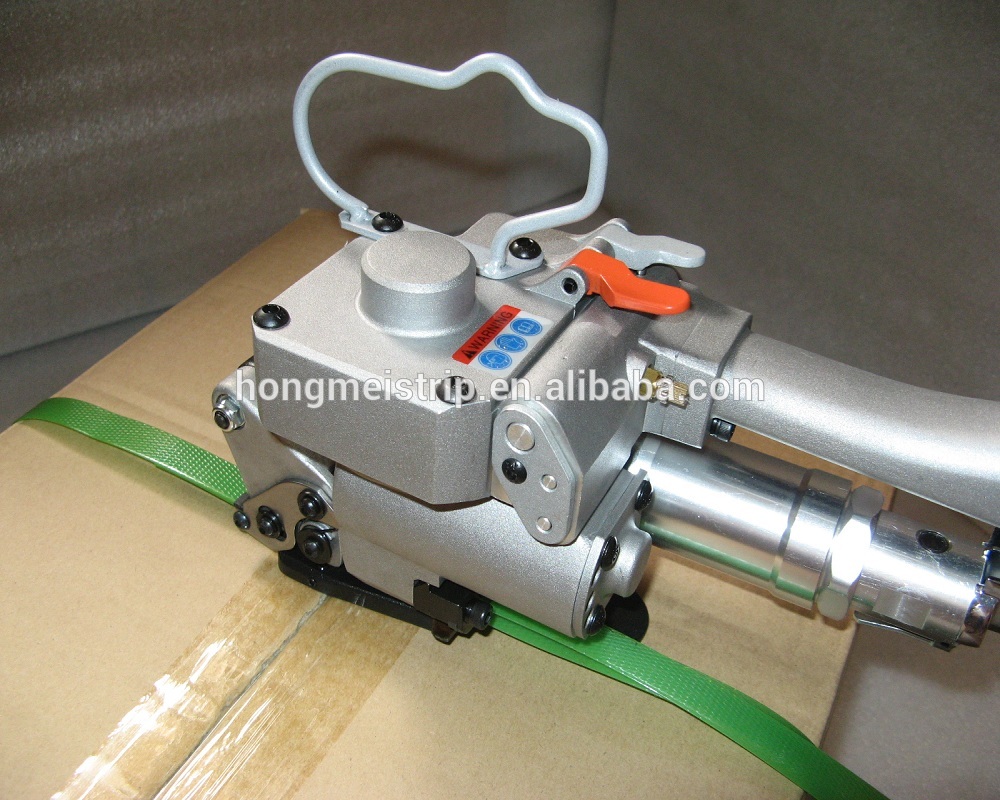

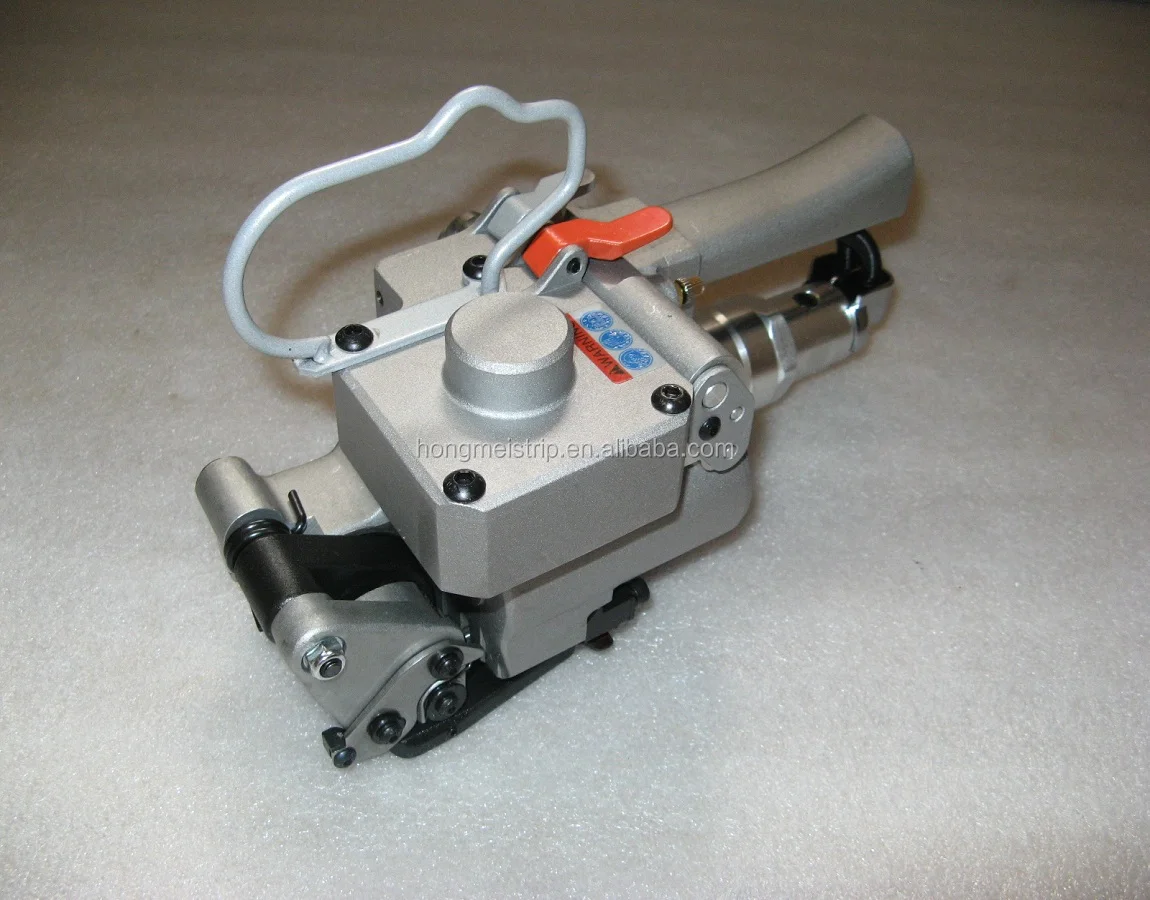

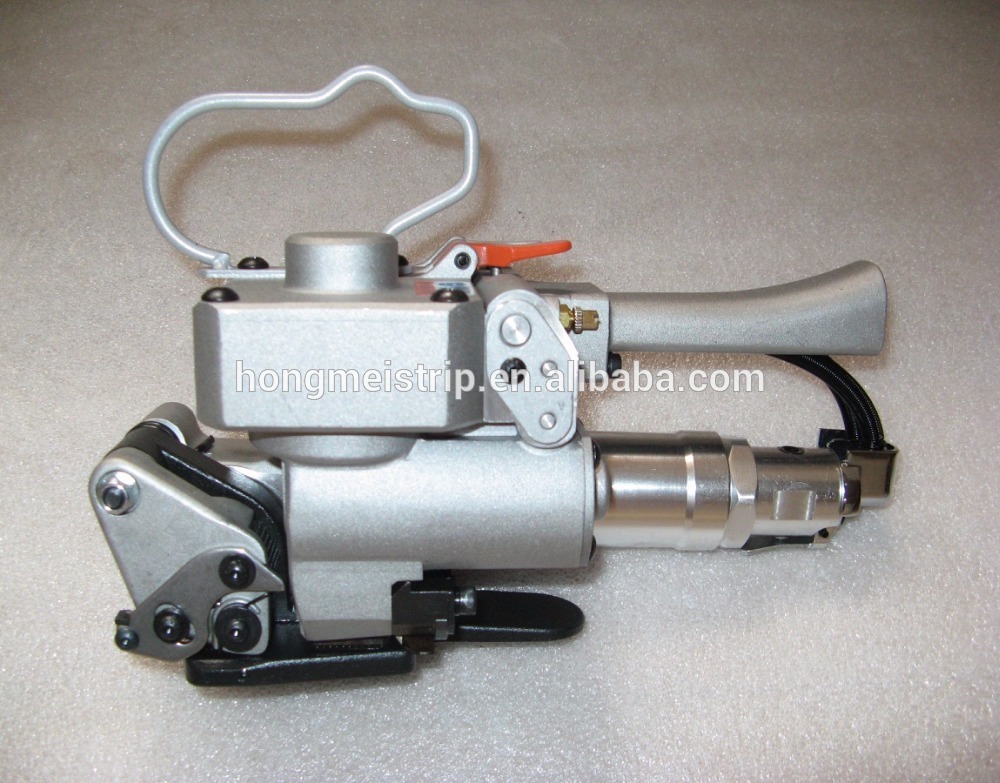

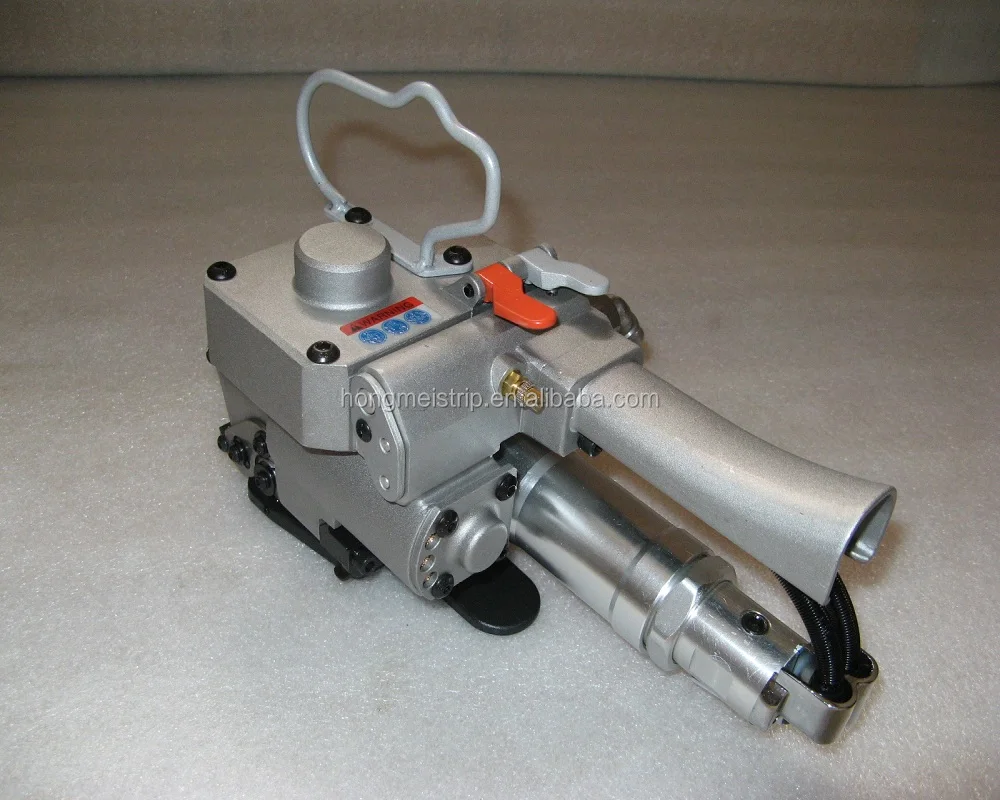

PET Strapping Machine 's Photo

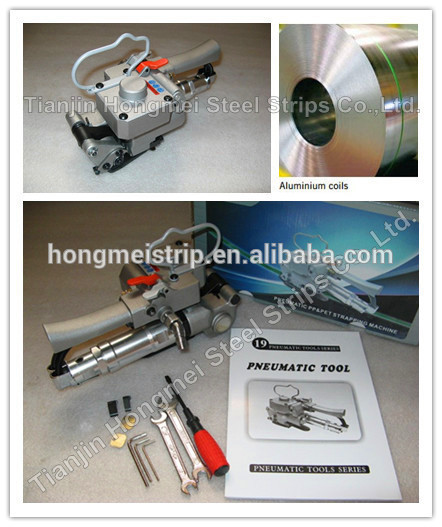

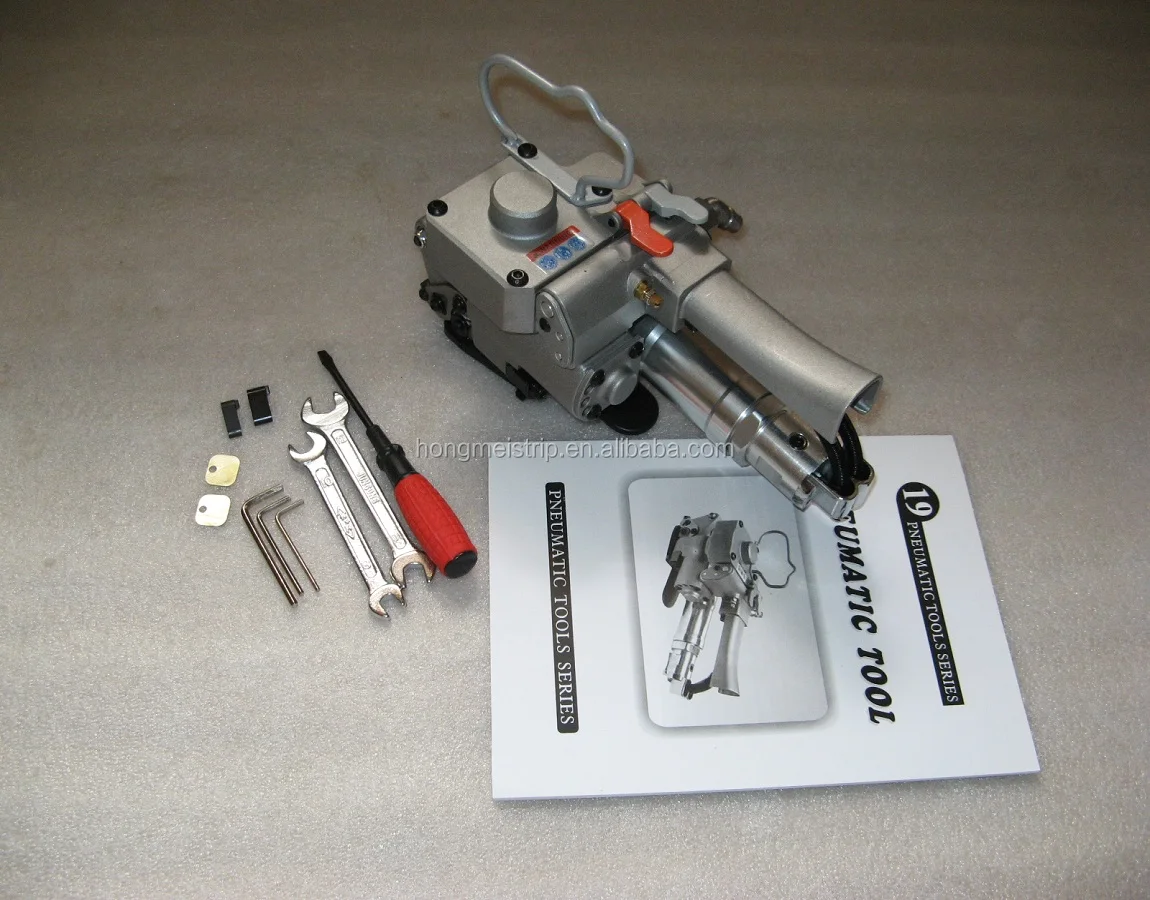

Packing inner box with foam protection,white box.

How to use pneumatic PET  strapping tool pls check  photo  as follow

How To Operation XQD-19 Pneuamtic PET Plastic strapping Tool ?

Pls check youtube vedio link: http://www.youtube.com/watch?v=PBB6FtFDvgQ&feature=youtu.be

Following the questions about the tool from customers and the answers.

1. What size of the strap does the tool work with?

Strap width:13mm,16mm,19mm; thickness:from 0.5mm to 1.3mm. but you have to specify the strap size when you make order for it. For example, 16mmx0.8mm.

2. Did the tool need other equipments to finish the packing?

Yes, need the air compressor to supply the air.

3. How long does the tool work properly except the necessary wearing parts replacement?

3-4 years and one year guarantee except the wearing parts.
